Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch

Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch
Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch

Large Image :  Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO
Model Number: JJM5b
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/day
Detailed Product Description

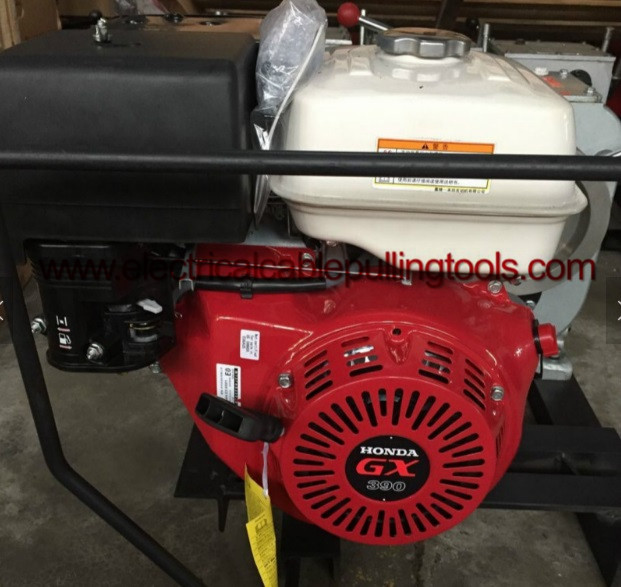

Model: JJM-5B Engine: Honda 390
Driven: Petrol Force Pulling: 5T
Type: Cable Pulling Winch Apply: Pulling Rope
High Light:

portable capstan winch

,

gas powered winch

5 Ton Gasoline Powered Capstan Winch Gearbox Honda Engine Cable Pulling Winch



Application

5 Ton Gasoline Powered Capstan Winch Gearbox is used for tower erection,pole setting,stringing wire in electrical power line construction.

It is mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.

Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Features

1)Speedy and Efficient

2)Safe and Reliable

3)Compact structure

4)Widely used

5)Light weight



Technical Data

Model Gear Pulling Force(KN) Pulling Speed(m/min) Dimensions(mm) Weight(kg)
JJM-5B Fast 9 24 1100*525*600 180
Mid 15 14
Mid 30 9
Slow 50 5

Petrol Driven 5 Ton High Speed Winch / Gasoline Powered Portable Capstan Winch 0
