Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO CE | Model: | SHDN |
|---|---|---|---|
| Dimater: | 660mm | Name: | Stringing Pulley |
| Type: | Transmission Line Tools | Material: | Mc Nylon |
| High Light: | transmission line tool,cable pulling tools |
||

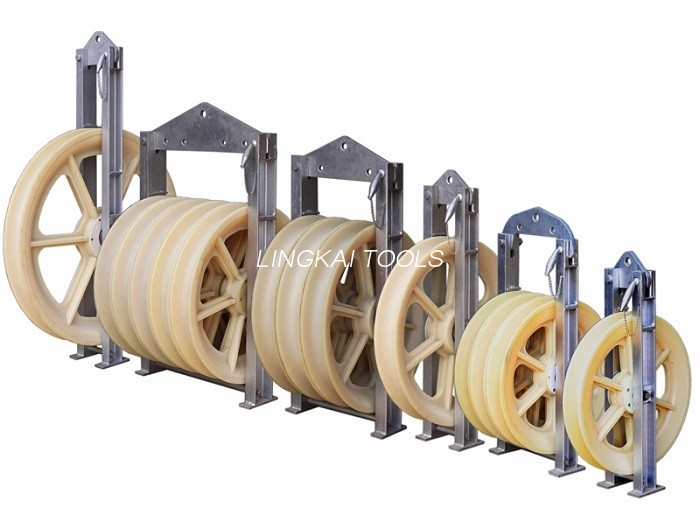

660mm Large Diameter Stringing Block Transmission Line Stringing Pulley
Our 660mm Large Diameter Stringing Block is fitted with the maximum suitable conductor LGJ500. That is to say, the aluminum of this conducting wire possesses the cross section of at most 500 square millimeters.
In addition, the block dimension (outside diameter*root diameter*sheave width) is Φ660× Φ560× 100 (mm). The middle steel sheave of both 10122 and 10123 types has a width of 90mm. We can also supply the middle nylon sheave with the width of 90mm for option.
Stringing pulley block features
1. To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
2. Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
3. The material is divided into aluminum alloy and MC nylon.
4. Pulley pendant divided into joint plate and hook type.
Specifications
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber coated aluminum sheave |
| 10122 | SHS660 | 3 | 40 | 106 | Middle: cast steel sheave with the width of 90mm Conductor: rubber coated aluminum sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |
| 10124 | SHDN660 | 1 | 20 | 24 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 92 | Middle: MC nylon sheave Conductor: rubber coated aluminum sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127 | SHSQN660 | 3 | 40 | 76 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | |
| 10129 | SHQZ660 | 7 | 80 | 268 | Middle: cast steel sheave Conductor: rubber coated aluminum sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
